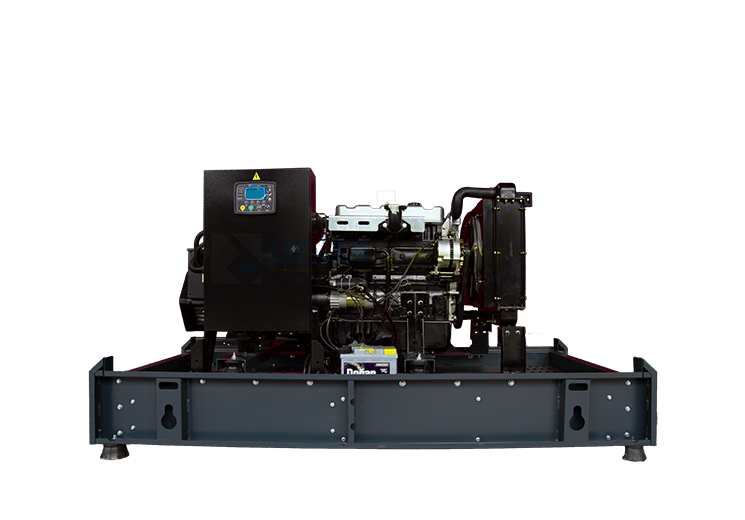

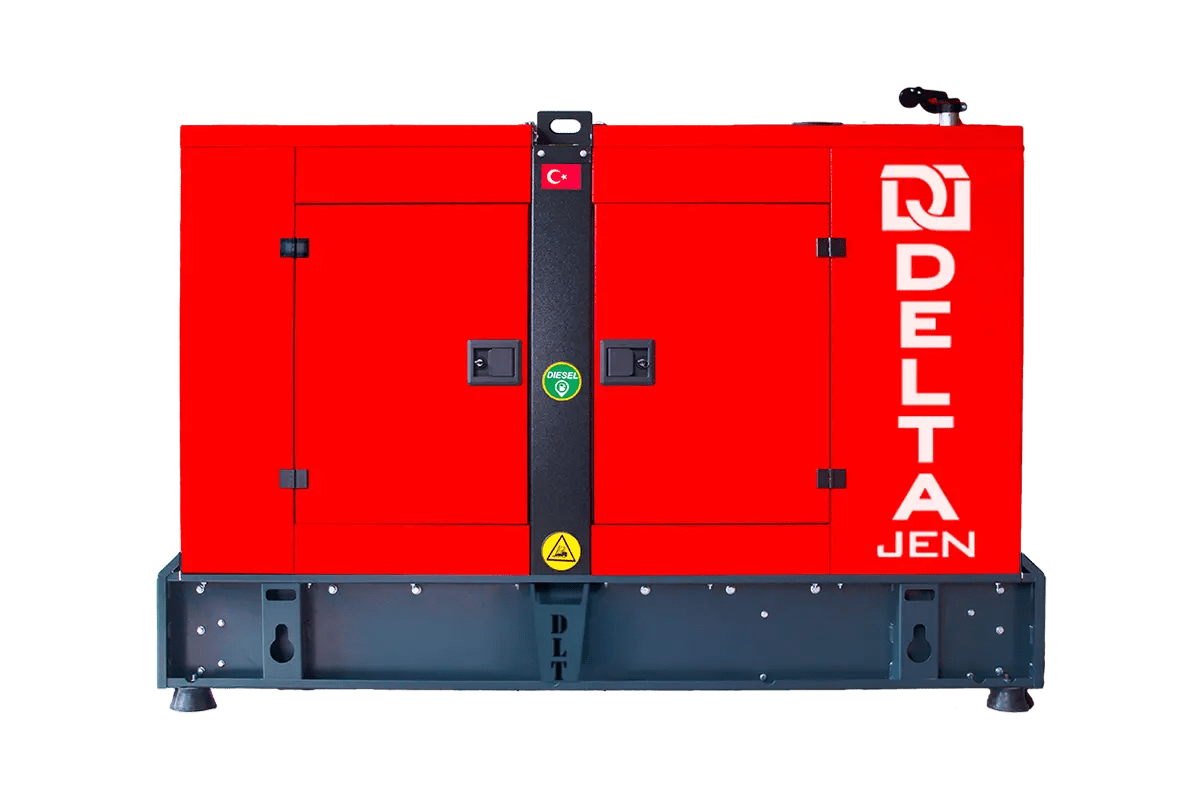

yangdong_kabin_afterdeltajen-kabin-2
STANDARD FEATURES
  • Pre-heater
  • Battery and cables
  • Electronic battery charger
  • Chassis-integrated fuel tank
  • Flexible fuel hoses and oil drain valve
  • Welded steel chassis with electrostatic powder coating
  • Stainless galvanised-steel cabin design
OPTIONAL FEATURES
  • Sound-insulation cabin
  • Transfer panel
  • Fuel/water separator filter
  • Alternator output breaker
  • Fuel tank heater
  • Oil heater
  • External fuel tank and transfer pump
  • Remote monitoring and control
  • Synchronisation systems
  • Special-type exhaust silencer
  • Trailer

Generator Models


HTML tutorialDJ-YD SERİSİ 12 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
12 10 1500
Prime Power
kVA kW Engine Speed (rpm)
11 9 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Yang Dong
Model YD380D
Air Intake System Naturally Aspirated
Displacement (L) 1,36
Cylinder Arrangement 3 In-line
Bore x Stroke (mm x mm) 85*90
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 950
Length (mm) 2000
Height (mm) 1260
Weight (kg) 650
Fuel Tank Capacity (L) 85
Open Set
Width (mm) 950
Length (mm) 1700
Height (mm) 1100
Weight (kg) 456
Fuel Tank Capacity (L) 85

HTML tutorialDJ-YD SERİSİ 17 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
17 14 1500
Prime Power
kVA kW Engine Speed (rpm)
15 12 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Yang Dong
Model YD480D
Air Intake System Naturally Aspirated
Displacement (L) 1,81
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 85*90
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 950
Length (mm) 2000
Height (mm) 1260
Weight (kg) 650
Fuel Tank Capacity (L) 85
Open Set
Width (mm) 950
Length (mm) 1700
Height (mm) 1100
Weight (kg) 456
Fuel Tank Capacity (L) 85

HTML tutorialDJ-YD SERİSİ 22 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
22 18 1500
Prime Power
kVA kW Engine Speed (rpm)
20 16 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Yang Dong
Model YND485D
Air Intake System Naturally Aspirated
Displacement (L) 2,15
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 85*95
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 950
Length (mm) 2000
Height (mm) 1260
Weight (kg) 733
Fuel Tank Capacity (L) 85
Open Set
Width (mm) 950
Length (mm) 1700
Height (mm) 1100
Weight (kg) 545
Fuel Tank Capacity (L) 85

HTML tutorialDJ-YD SERİSİ 25 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
25 20 1500
Prime Power
kVA kW Engine Speed (rpm)
22,5 18 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Yang Dong
Model YND485D
Air Intake System Naturally Aspirated
Displacement (L) 2,21
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 85*95
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 950
Length (mm) 2000
Height (mm) 1260
Weight (kg) 733
Fuel Tank Capacity (L) 85
Open Set
Width (mm) 950
Length (mm) 1700
Height (mm) 1100
Weight (kg) 545
Fuel Tank Capacity (L) 85

HTML tutorialDJ-YD SERİSİ 28 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
28 22 1500
Prime Power
kVA kW Engine Speed (rpm)
25 20 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Yang Dong
Model YSD490D
Air Intake System Naturally Aspirated
Displacement (L) 2,54
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 90*100
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 950
Length (mm) 2000
Height (mm) 1260
Weight (kg) 795
Fuel Tank Capacity (L) 85
Open Set
Width (mm) 950
Length (mm) 1700
Height (mm) 1100
Weight (kg) 600
Fuel Tank Capacity (L) 85

HTML tutorialDJ-YD SERİSİ 34 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
34 27 1500
Prime Power
kVA kW Engine Speed (rpm)
31 25 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Yang Dong
Model Y490D
Air Intake System Naturally Aspirated
Displacement (L) 2,67
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 95*105
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 950
Length (mm) 2000
Height (mm) 1260
Weight (kg) TBA
Fuel Tank Capacity (L) 85
Open Set
Width (mm) 950
Length (mm) 1700
Height (mm) 1100
Weight (kg) TBA
Fuel Tank Capacity (L) 85

HTML tutorialDJ-YD SERİSİ 44 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
44 35 1500
Prime Power
kVA kW Engine Speed (rpm)
40 32 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Yang Dong
Model YD4102D
Air Intake System Naturally Aspirated
Displacement (L) 3,87
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 105*118
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 950
Length (mm) 2300
Height (mm) 1560
Weight (kg) TBA
Fuel Tank Capacity (L) 85
Open Set
Width (mm) 950
Length (mm) 2000
Height (mm) 1310
Weight (kg) TBA
Fuel Tank Capacity (L) 85

HTML tutorialDJ-YD SERİSİ 50 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
50 45 1500
Prime Power
kVA kW Engine Speed (rpm)
40 36 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Yang Dong
Model YD4105D
Air Intake System Turbocharged, Intercooler
Displacement (L) 4,1
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 102*118
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 950
Length (mm) 2300
Height (mm) 1560
Weight (kg) TBA
Fuel Tank Capacity (L) 85
Open Set
Width (mm) 950
Length (mm) 2000
Height (mm) 1310
Weight (kg) TBA
Fuel Tank Capacity (L) 85

HTML tutorialDJ-YD SERİSİ 66 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
66 53 1500
Prime Power
kVA kW Engine Speed (rpm)
60 48 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Yang Dong
Model Y4102ZLD
Air Intake System Turbocharged, Intercooler
Displacement (L) 3,87
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 102*118
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1000
Length (mm) 2300
Height (mm) 1545
Weight (kg) 932
Fuel Tank Capacity (L) 101
Open Set
Width (mm) 1000
Length (mm) 1900
Height (mm) 1326
Weight (kg) 717
Fuel Tank Capacity (L) 101

HTML tutorialDJ-YD SERİSİ 75 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
75 60 1500
Prime Power
kVA kW Engine Speed (rpm)
68 55 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Yang Dong
Model Y4105ZLD
Air Intake System Turbocharged, Intercooler
Displacement (L) 4,1
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 105*118
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 950
Length (mm) 2300
Height (mm) 1560
Weight (kg) TBA
Fuel Tank Capacity (L) 85
Open Set
Width (mm) 950
Length (mm) 2000
Height (mm) 1310
Weight (kg) TBA
Fuel Tank Capacity (L) 85

HTML tutorialDJ-YD SERİSİ 90 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
90 72 1500
Prime Power
kVA kW Engine Speed (rpm)
82 65 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Yang Dong
Model YD4EZLD
Air Intake System Turbocharged, Intercooler
Displacement (L) 4,1
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 110*118
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 950
Length (mm) 2650
Height (mm) 1660
Weight (kg) TBA
Fuel Tank Capacity (L) 160
Open Set
Width (mm) 950
Length (mm) 2350
Height (mm) 1400
Weight (kg) TBA
Fuel Tank Capacity (L) 160

HTML tutorialDJ-YD SERİSİ 110 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
110 88 1500
Prime Power
kVA kW Engine Speed (rpm)
100 80 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Yang Dong
Model YD4110ZLD
Air Intake System Turbocharged, Intercooler
Displacement (L) 4,4
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 110*118
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 950
Length (mm) 2650
Height (mm) 1660
Weight (kg) TBA
Fuel Tank Capacity (L) 160
Open Set
Width (mm) 950
Length (mm) 2350
Height (mm) 1400
Weight (kg) TBA
Fuel Tank Capacity (L) 160

HTML tutorialDJ-YD SERİSİ 125 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
125 100 1500
Prime Power
kVA kW Engine Speed (rpm)
114 91 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Yang Dong
Model YD4GZLD
Air Intake System Turbocharged, Intercooler
Displacement (L) 4,4
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 110*118
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 950
Length (mm) 2650
Height (mm) 1660
Weight (kg) TBA
Fuel Tank Capacity (L) 160
Open Set
Width (mm) 950
Length (mm) 2350
Height (mm) 1400
Weight (kg) TBA
Fuel Tank Capacity (L) 160
Cabin Features

Generator chassis are produced from steel with a special modular design. The tank is mounted to the chassis. Engine, alternator and radiator connections use vibration mounts to minimise vibration. Custom chassis and fuel-tank designs are available on request.

Acil Stop Butonu
Kontrol Panosu Penceresi
Special Sound Insulation
Egzoz Susturucu
Dedicated Cooling Air Ducts
Electrostatic paint coating resistant to corrosion and rust
Control Panel

The generator control panels are easy to use, updatable through secure software, robust and long-lasting. Optional remote control via ETHERNET and GPRS is available. The panel body is made from steel sheet and finished with electrostatic powder paint. The electronics are isolated and water-resistant.

Features
Automatic Control System with LCD Display
Remote Monitoring and Control
Multi-function Operation
Multiple Language Selection
Programmable via USB, RS-232 and GSM


DATAKOM PANEL DATASHEET (TR)



DATAKOM PANEL DATASHEET (EN)



FORTRUST PANEL DATASHEET (EN)

MORE INFORMATION

OUR E-CATALOGUE


CLICK TO DOWNLOAD




KATALOG

Quick Links

Contact

E-Catalogue

Download our full company catalogue.

Download
Scroll to Top
