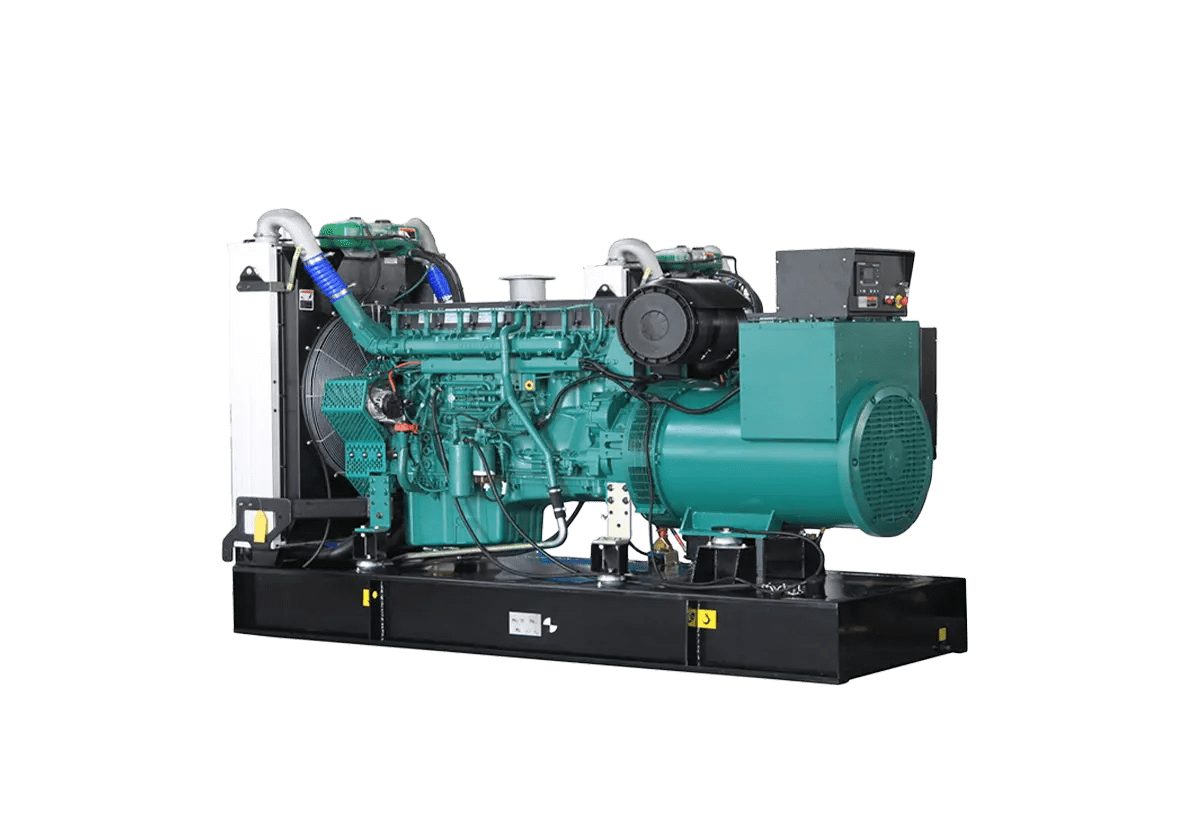

volvo_pentadeltajen-kabin2-jeneratör
STANDARD FEATURES
  • Pre-heater
  • Battery and cables
  • Electronic battery charger
  • Chassis-integrated fuel tank
  • Flexible fuel hoses and oil drain valve
  • Welded steel chassis with electrostatic powder coating
  • Stainless galvanised-steel cabin design
OPTIONAL FEATURES
  • Sound-insulation cabin
  • Transfer panel
  • Fuel/water separator filter
  • Alternator output breaker
  • Fuel tank heater
  • Oil heater
  • External fuel tank and transfer pump
  • Remote monitoring and control
  • Synchronisation systems
  • Special-type exhaust silencer
  • Trailer

Generator Models


HTML tutorialDJ-V SERİSİ 94 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Amperage
94 75 136
Prime Power
kVA kW Amperage
85 68 122
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Volvo
Model TAD530GE
Max. Total Output (kWm/hp) 83/113
Displacement (L) 4,76
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 108*130
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1100
Length (mm) 2900
Height (mm) 1800
Weight (kg) 1550
Fuel Tank Capacity (L) 220
Open Set
Width (mm) 1100
Length (mm) 2200
Height (mm) 1600
Weight (kg) 1300
Fuel Tank Capacity (L) 220

HTML tutorialDJ-V SERİSİ 110 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Amperage
110 88 159
Prime Power
kVA kW Amperage
110 80 144
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Volvo
Model TAD531GE
Max. Total Output (kWm/hp) 98/133
Displacement (L) 4,76
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 108*130
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1100
Length (mm) 2900
Height (mm) 1800
Weight (kg) 1600
Fuel Tank Capacity (L) 220
Open Set
Width (mm) 1100
Length (mm) 2200
Height (mm) 1600
Weight (kg) 1350
Fuel Tank Capacity (L) 220

HTML tutorialDJ-V SERİSİ 145 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Amperage
145 116 209
Prime Power
kVA kW Amperage
132 105 190
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Volvo
Model TAD532GE
Max. Total Output (kWm/hp) 125/170
Displacement (L) 4,76
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 108*130
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1100
Length (mm) 2900
Height (mm) 1800
Weight (kg) 1650
Fuel Tank Capacity (L) 220
Open Set
Width (mm) 1100
Length (mm) 2200
Height (mm) 1650
Weight (kg) 1400
Fuel Tank Capacity (L) 220

HTML tutorialDJ-V SERİSİ 167 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Amperage
167 133 241
Prime Power
kVA kW Amperage
150 120 216
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Volvo
Model TAD731GE
Max. Total Output (kWm/hp) 148/201
Displacement (L) 7,15
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 108*130
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1100
Length (mm) 3200
Height (mm) 1800
Weight (kg) 2150
Fuel Tank Capacity (L) 280
Open Set
Width (mm) 1100
Length (mm) 2500
Height (mm) 1650
Weight (kg) 1750
Fuel Tank Capacity (L) 280

HTML tutorialDJ-V SERİSİ 200 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Amperage
200 160 289
Prime Power
kVA kW Amperage
180 144 260
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Volvo
Model TAD732GE
Max. Total Output (kWm/hp) 179/243
Displacement (L) 7,15
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 108*130
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1300
Length (mm) 3600
Height (mm) 2050
Weight (kg) 2450
Fuel Tank Capacity (L) 365
Open Set
Width (mm) 1300
Length (mm) 2900
Height (mm) 1800
Weight (kg) 2100
Fuel Tank Capacity (L) 365

HTML tutorialDJ-V SERİSİ 225 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Amperage
225 180 325
Prime Power
kVA kW Amperage
200 160 289
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Volvo
Model TAD733GE
Max. Total Output (kWm/hp) 195/265
Displacement (L) 7,15
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 108*130
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1300
Length (mm) 3600
Height (mm) 2050
Weight (kg) 2550
Fuel Tank Capacity (L) 365
Open Set
Width (mm) 1300
Length (mm) 2900
Height (mm) 1800
Weight (kg) 2200
Fuel Tank Capacity (L) 365

HTML tutorialDJ-V SERİSİ 275 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Amperage
275 220 397
Prime Power
kVA kW Amperage
250 200 361
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Volvo
Model TAD734GE
Max. Total Output (kWm/hp) 241/327
Displacement (L) 7,15
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 108*130
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1300
Length (mm) 3600
Height (mm) 2050
Weight (kg) 2650
Fuel Tank Capacity (L) 365
Open Set
Width (mm) 1300
Length (mm) 2900
Height (mm) 1800
Weight (kg) 2300
Fuel Tank Capacity (L) 365

HTML tutorialDJ-V SERİSİ 330 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Amperage
330 264 476
Prime Power
kVA kW Amperage
300 240 433
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Volvo
Model TAD1341GE
Max. Total Output (kWm/hp) 298/405
Displacement (L) 12,78
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 131*158
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1300
Length (mm) 3600
Height (mm) 2050
Weight (kg) 3350
Fuel Tank Capacity (L) 365
Open Set
Width (mm) 1300
Length (mm) 2900
Height (mm) 2000
Weight (kg) 3000
Fuel Tank Capacity (L) 365

HTML tutorialDJ-V SERİSİ 385 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Amperage
385 308 556
Prime Power
kVA kW Amperage
350 280 505
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Volvo
Model TAD1342GE
Max. Total Output (kWm/hp) 333/453
Displacement (L) 12,78
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 131*158
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1400
Length (mm) 4000
Height (mm) 2200
Weight (kg) 3500
Fuel Tank Capacity (L) 500
Open Set
Width (mm) 1400
Length (mm) 4000
Height (mm) 2000
Weight (kg) 3100
Fuel Tank Capacity (L) 500

HTML tutorialDJ-V SERİSİ 415 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Amperage
415 332 599
Prime Power
kVA kW Amperage
375 300 540
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Volvo
Model TAD1343GE
Max. Total Output (kWm/hp) 356/484
Displacement (L) 12,78
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 131*158
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1400
Length (mm) 4000
Height (mm) 2200
Weight (kg) 3750
Fuel Tank Capacity (L) 500
Open Set
Width (mm) 1400
Length (mm) 4000
Height (mm) 2000
Weight (kg) 3350
Fuel Tank Capacity (L) 500

HTML tutorialDJ-V SERİSİ 450 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Amperage
450 360 650
Prime Power
kVA kW Amperage
400 320 578
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Volvo
Model TAD1344GE
Max. Total Output (kWm/hp) 389/529
Displacement (L) 12,78
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 131*158
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1400
Length (mm) 4000
Height (mm) 2200
Weight (kg) 3850
Fuel Tank Capacity (L) 500
Open Set
Width (mm) 1400
Length (mm) 4000
Height (mm) 2000
Weight (kg) 3450
Fuel Tank Capacity (L) 500

HTML tutorialDJ-V SERİSİ 500 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Amperage
500 400 722
Prime Power
kVA kW Amperage
450 360 650
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Volvo
Model TAD1345GE
Max. Total Output (kWm/hp) 431/586
Displacement (L) 12,78
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 131*158
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1400
Length (mm) 4000
Height (mm) 2200
Weight (kg) 3950
Fuel Tank Capacity (L) 500
Open Set
Width (mm) 1400
Length (mm) 4000
Height (mm) 2000
Weight (kg) 3550
Fuel Tank Capacity (L) 500

HTML tutorialDJ-V SERİSİ 550 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Amperage
550 440 794
Prime Power
kVA kW Amperage
500 400 722
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Volvo
Model TAD1641GE
Max. Total Output (kWm/hp) 473/643
Displacement (L) 16,12
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 144*165
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1800
Length (mm) 4200
Height (mm) 2500
Weight (kg) 5800
Fuel Tank Capacity (L) 600
Open Set
Width (mm) 1800
Length (mm) 4200
Height (mm) 2400
Weight (kg) 5150
Fuel Tank Capacity (L) 600

HTML tutorialDJ-V SERİSİ 650 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Amperage
650 520 935
Prime Power
kVA kW Amperage
590 472 850
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Volvo
Model TAD1642GE
Max. Total Output (kWm/hp) 554/753
Displacement (L) 16,12
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 144*165
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1800
Length (mm) 4200
Height (mm) 2500
Weight (kg) 6000
Fuel Tank Capacity (L) 600
Open Set
Width (mm) 1800
Length (mm) 4200
Height (mm) 2400
Weight (kg) 5350
Fuel Tank Capacity (L) 600

HTML tutorialDJ-V SERİSİ 720 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Amperage
720 576 1037
Prime Power
kVA kW Amperage
660 528 950
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Volvo
Model TWD1644GE
Max. Total Output (kWm/hp) 610/820
Displacement (L) 16,12
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 144*165
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1800
Length (mm) 4200
Height (mm) 2500
Weight (kg) 6100
Fuel Tank Capacity (L) 600
Open Set
Width (mm) 1800
Length (mm) 4200
Height (mm) 2400
Weight (kg) 5450
Fuel Tank Capacity (L) 600

HTML tutorialDJ-V SERİSİ 770 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Amperage
770 616 1110
Prime Power
kVA kW Amperage
700 560 1010
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Volvo
Model TWD1645GE
Max. Total Output (kWm/hp) 655/891
Displacement (L) 16,12
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 144*165
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1800
Length (mm) 4200
Height (mm) 2500
Weight (kg) 6300
Fuel Tank Capacity (L) 600
Open Set
Width (mm) 1800
Length (mm) 4200
Height (mm) 2400
Weight (kg) 5650
Fuel Tank Capacity (L) 600
Cabin Features

Generator chassis are produced from steel with a special modular design. The tank is mounted to the chassis. Engine, alternator and radiator connections use vibration mounts to minimise vibration. Custom chassis and fuel-tank designs are available on request.

Acil Stop Butonu
Kontrol Panosu Penceresi
Special Sound Insulation
Egzoz Susturucu
Dedicated Cooling Air Ducts
Electrostatic paint coating resistant to corrosion and rust
Control Panel

The generator control panels are easy to use, updatable through secure software, robust and long-lasting. Optional remote control via ETHERNET and GPRS is available. The panel body is made from steel sheet and finished with electrostatic powder paint. The electronics are isolated and water-resistant.

Features
Automatic Control System with LCD Display
Remote Monitoring and Control
Multi-function Operation
Multiple Language Selection
Programmable via USB, RS-232 and GSM


DATAKOM PANEL DATASHEET (TR)



DATAKOM PANEL DATASHEET (EN)



FORTRUST PANEL DATASHEET (EN)

MORE INFORMATION

OUR E-CATALOGUE


CLICK TO DOWNLOAD




KATALOG

Quick Links

Contact

E-Catalogue

Download our full company catalogue.

Download
Scroll to Top
