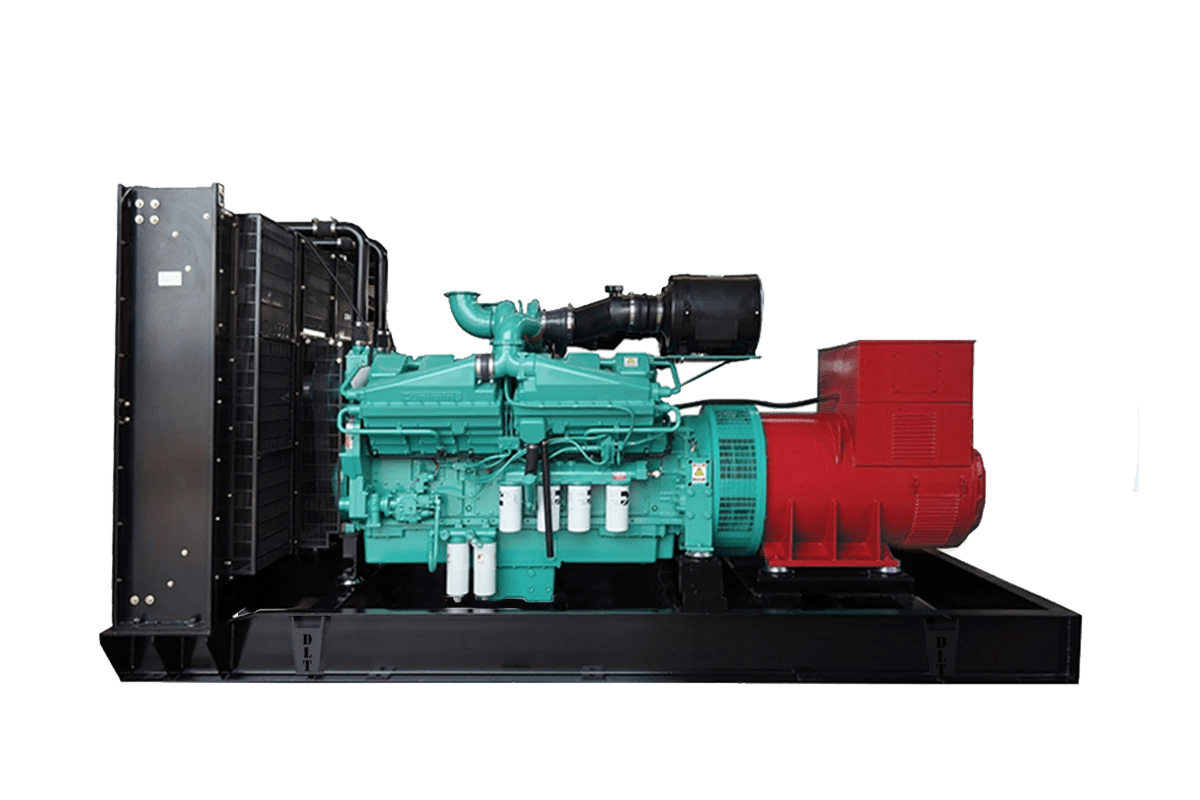

cummins-jeneratördeltajen-kabin-2
STANDARD FEATURES
  • Pre-heater
  • Battery and cables
  • Electronic battery charger
  • Chassis-integrated fuel tank
  • Flexible fuel hoses and oil drain valve
  • Welded steel chassis with electrostatic powder coating
  • Stainless galvanised-steel cabin design
OPTIONAL FEATURES
  • Sound-insulation cabin
  • Transfer panel
  • Fuel/water separator filter
  • Alternator output breaker
  • Fuel tank heater
  • Oil heater
  • External fuel tank and transfer pump
  • Remote monitoring and control
  • Synchronisation systems
  • Special-type exhaust silencer
  • Trailer

Generator Models


HTML tutorialDJ-C SERİSİ 30 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
30 24 1500
Prime Power
kVA kW Engine Speed (rpm)
27 22 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model 4B3.9-G1
Air Intake System Turbocharged / Aftercooler
Displacement (L) 3,9
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 102*120
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1100
Length (mm) 2300
Height (mm) 1560
Weight (kg) 1100
Fuel Tank Capacity (L) 85
Open Set
Width (mm) 1000
Length (mm) 2000
Height (mm) 1310
Weight (kg) 830
Fuel Tank Capacity (L) 85

HTML tutorialDJ-C SERİSİ 44 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
44 35 1500
Prime Power
kVA kW Engine Speed (rpm)
40 32 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model 4BT3.9-G1
Air Intake System Turbocharged / Aftercooler
Displacement (L) 3,9
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 102*120
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1100
Length (mm) 2300
Height (mm) 1560
Weight (kg) 1100
Fuel Tank Capacity (L) 85
Open Set
Width (mm) 1000
Length (mm) 2000
Height (mm) 1310
Weight (kg) 830
Fuel Tank Capacity (L) 85

HTML tutorialDJ-C SERİSİ 63 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
63 50 1500
Prime Power
kVA kW Engine Speed (rpm)
57 46 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model 4BTA3.9-G2
Air Intake System Turbocharged / Aftercooler
Displacement (L) 3,9
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 102*120
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1100
Length (mm) 2300
Height (mm) 1560
Weight (kg) 1100
Fuel Tank Capacity (L) 85
Open Set
Width (mm) 1000
Length (mm) 2000
Height (mm) 1310
Weight (kg) 830
Fuel Tank Capacity (L) 85

HTML tutorialDJ-C SERİSİ 88 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
88 70 1500
Prime Power
kVA kW Engine Speed (rpm)
80 64 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model 4BTA3.9-G11
Air Intake System Turbocharged / Aftercooler
Displacement (L) 3,9
Cylinder Arrangement 4 In-line
Bore x Stroke (mm x mm) 102*120
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1100
Length (mm) 2300
Height (mm) 1560
Weight (kg) 1100
Fuel Tank Capacity (L) 85
Open Set
Width (mm) 1000
Length (mm) 2000
Height (mm) 1310
Weight (kg) 830
Fuel Tank Capacity (L) 85

HTML tutorialDJ-C SERİSİ 110 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
110 88 1500
Prime Power
kVA kW Engine Speed (rpm)
100 80 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model 6BT5.9-G2
Air Intake System Turbocharged / Aftercooler
Displacement (L) 5,9
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 102*120
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1100
Length (mm) 3000
Height (mm) 1900
Weight (kg) 1750
Fuel Tank Capacity (L) 300
Open Set
Width (mm) 1100
Length (mm) 3000
Height (mm) 1600
Weight (kg) 1300
Fuel Tank Capacity (L) 300

HTML tutorialDJ-C SERİSİ 150 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
150 120 1500
Prime Power
kVA kW Engine Speed (rpm)
136 109 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model 6BTAA5.9-G2
Air Intake System Turbocharged / Aftercooler
Displacement (L) 5,9
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 102*120
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1100
Length (mm) 3000
Height (mm) 1900
Weight (kg) 1780
Fuel Tank Capacity (L) 300
Open Set
Width (mm) 1100
Length (mm) 3000
Height (mm) 1600
Weight (kg) 1380
Fuel Tank Capacity (L) 300

HTML tutorialDJ-C SERİSİ 175 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
175 140 1500
Prime Power
kVA kW Engine Speed (rpm)
159 127 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model 6BTAA5.9-G12
Air Intake System Turbocharged / Aftercooler
Displacement (L) 5,9
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 102*120
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1100
Length (mm) 3000
Height (mm) 1900
Weight (kg) 1850
Fuel Tank Capacity (L) 300
Open Set
Width (mm) 1100
Length (mm) 3000
Height (mm) 1600
Weight (kg) 1480
Fuel Tank Capacity (L) 300

HTML tutorialDJ-C SERİSİ 200 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
200 160 1500
Prime Power
kVA kW Engine Speed (rpm)
182 145 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model 6CTA8.3-G2
Air Intake System Turbocharged / Aftercooler
Displacement (L) 8,3
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 114*135
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1100
Length (mm) 3000
Height (mm) 1900
Weight (kg) 1900
Fuel Tank Capacity (L) 300
Open Set
Width (mm) 1100
Length (mm) 3000
Height (mm) 1600
Weight (kg) 1530
Fuel Tank Capacity (L) 300

HTML tutorialDJ-C SERİSİ 220 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
220 176 1500
Prime Power
kVA kW Engine Speed (rpm)
200 160 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model 6CTAA8.3-G2
Air Intake System Turbocharged / Aftercooler
Displacement (L) 8,3
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 114*135
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1100
Length (mm) 3000
Height (mm) 1900
Weight (kg) 1900
Fuel Tank Capacity (L) 300
Open Set
Width (mm) 1100
Length (mm) 3000
Height (mm) 1600
Weight (kg) 1530
Fuel Tank Capacity (L) 300

HTML tutorialDJ-C SERİSİ 250 kVA CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
250 200 1500
Prime Power
kVA kW Engine Speed (rpm)
227 182 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model 6LTAA8.9-G2
Air Intake System Turbocharged / Aftercooler
Displacement (L) 8,9
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 114*145
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1200
Length (mm) 3500
Height (mm) 1850
Weight (kg) 2780
Fuel Tank Capacity (L) 360
Open Set
Width (mm) 1200
Length (mm) 2900
Height (mm) 1900
Weight (kg) 2440
Fuel Tank Capacity (L) 360

HTML tutorialDJ-C SERİSİ 275 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
275 220 1500
Prime Power
kVA kW Engine Speed (rpm)
250 200 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model 6LTAA8.9-G3
Air Intake System Turbocharged / Aftercooler
Displacement (L) 8,9
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 114*145
Governor Type Mechanical / Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1200
Length (mm) 3500
Height (mm) 1850
Weight (kg) 2780
Fuel Tank Capacity (L) 360
Open Set
Width (mm) 1200
Length (mm) 2900
Height (mm) 1900
Weight (kg) 2440
Fuel Tank Capacity (L) 360

HTML tutorialDJ-C SERİSİ 325 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
325 260 1500
Prime Power
kVA kW Engine Speed (rpm)
295 236 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model NTA855-G1A
Air Intake System Turbocharged / Aftercooler
Displacement (L) 14
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 140*152
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1500
Length (mm) 4000
Height (mm) 2850
Weight (kg) 3400
Fuel Tank Capacity (L) 1000
Open Set
Width (mm) 1500
Length (mm) 4000
Height (mm) 2050
Weight (kg) 2900
Fuel Tank Capacity (L) 1000

HTML tutorialDJ-C SERİSİ 350 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
350 280 1500
Prime Power
kVA kW Engine Speed (rpm)
318 255 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model NTA855-G1B
Air Intake System Turbocharged / Aftercooler
Displacement (L) 14
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 140*152
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1500
Length (mm) 4000
Height (mm) 2850
Weight (kg) 3400
Fuel Tank Capacity (L) 1000
Open Set
Width (mm) 1500
Length (mm) 4000
Height (mm) 2050
Weight (kg) 2900
Fuel Tank Capacity (L) 1000

HTML tutorialDJ-C SERİSİ 385 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
385 308 1500
Prime Power
kVA kW Engine Speed (rpm)
350 280 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model NTA855-G2A
Air Intake System Turbocharged / Aftercooler
Displacement (L) 14
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 140*152
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1500
Length (mm) 4000
Height (mm) 2850
Weight (kg) 3400
Fuel Tank Capacity (L) 1000
Open Set
Width (mm) 1500
Length (mm) 4000
Height (mm) 2050
Weight (kg) 2900
Fuel Tank Capacity (L) 1000

HTML tutorialDJ-C SERİSİ 420 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
420 336 1500
Prime Power
kVA kW Engine Speed (rpm)
382 305 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model NTAA855-G7
Air Intake System Turbocharged / Aftercooler
Displacement (L) 14
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 140*152
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1500
Length (mm) 4000
Height (mm) 2850
Weight (kg) 3400
Fuel Tank Capacity (L) 1000
Open Set
Width (mm) 1500
Length (mm) 4000
Height (mm) 2050
Weight (kg) 2900
Fuel Tank Capacity (L) 1000

HTML tutorialDJ-C SERİSİ 440 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
440 352 1500
Prime Power
kVA kW Engine Speed (rpm)
400 320 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model NTAA855-G7A
Air Intake System Turbocharged / Aftercooler
Displacement (L) 14
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 140*152
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1500
Length (mm) 4000
Height (mm) 2850
Weight (kg) 3400
Fuel Tank Capacity (L) 1000
Open Set
Width (mm) 1500
Length (mm) 4000
Height (mm) 2050
Weight (kg) 2900
Fuel Tank Capacity (L) 1000

HTML tutorialDJ-C SERİSİ 500 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
500 400 1500
Prime Power
kVA kW Engine Speed (rpm)
455 364 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model QSZ13-G3
Air Intake System Turbocharged / Aftercooler
Displacement (L) 13
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 159*159
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1500
Length (mm) 4000
Height (mm) 2850
Weight (kg) 3400
Fuel Tank Capacity (L) 1000
Open Set
Width (mm) 1500
Length (mm) 4000
Height (mm) 2050
Weight (kg) 2900
Fuel Tank Capacity (L) 1000

HTML tutorialDJ-C SERİSİ 550 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
550 440 1500
Prime Power
kVA kW Engine Speed (rpm)
500 400 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model KTA19-G3A
Air Intake System Turbocharged / Aftercooler
Displacement (L) 19
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 159*159
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) 1500
Length (mm) 4000
Height (mm) 2850
Weight (kg) 3400
Fuel Tank Capacity (L) 1000
Open Set
Width (mm) 1500
Length (mm) 4000
Height (mm) 2050
Weight (kg) 2900
Fuel Tank Capacity (L) 1000

HTML tutorialDJ-C SERİSİ 650 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
650 520 1500
Prime Power
kVA kW Engine Speed (rpm)
591 473 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model KTAA19-G6
Air Intake System Turbocharged / Aftercooler
Displacement (L) 19
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 159*159
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) N/A
Length (mm) N/A
Height (mm) N/A
Weight (kg) N/A
Fuel Tank Capacity (L) N/A
Open Set
Width (mm) N/A
Length (mm) N/A
Height (mm) N/A
Weight (kg) N/A
Fuel Tank Capacity (L) N/A

HTML tutorialDJ-C SERİSİ 690 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
690 552 1500
Prime Power
kVA kW Engine Speed (rpm)
627 502 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model KTAA19-G6A
Air Intake System Turbocharged / Aftercooler
Displacement (L) 19
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 159*159
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) N/A
Length (mm) N/A
Height (mm) N/A
Weight (kg) N/A
Fuel Tank Capacity (L) N/A
Open Set
Width (mm) N/A
Length (mm) N/A
Height (mm) N/A
Weight (kg) N/A
Fuel Tank Capacity (L) N/A

HTML tutorialDJ-C SERİSİ 750 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
750 600 1500
Prime Power
kVA kW Engine Speed (rpm)
682 545 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model QSK19-G11
Air Intake System Turbocharged / Aftercooler
Displacement (L) 19
Cylinder Arrangement 6 In-line
Bore x Stroke (mm x mm) 159*159
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) N/A
Length (mm) N/A
Height (mm) N/A
Weight (kg) N/A
Fuel Tank Capacity (L) N/A
Open Set
Width (mm) N/A
Length (mm) N/A
Height (mm) N/A
Weight (kg) N/A
Fuel Tank Capacity (L) N/A

HTML tutorialDJ-C SERİSİ 800 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
800 640 1500
Prime Power
kVA kW Engine Speed (rpm)
727 582 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model KTA38-G1
Air Intake System Turbocharged / Aftercooler
Displacement (L) 19
Cylinder Arrangement 12 V
Bore x Stroke (mm x mm) 159*159
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) N/A
Length (mm) N/A
Height (mm) N/A
Weight (kg) N/A
Fuel Tank Capacity (L) N/A
Open Set
Width (mm) N/A
Length (mm) N/A
Height (mm) N/A
Weight (kg) N/A
Fuel Tank Capacity (L) N/A

HTML tutorialDJ-C SERİSİ 825 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
825 660 1500
Prime Power
kVA kW Engine Speed (rpm)
750 600 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model KTA38-G2
Air Intake System Turbocharged / Aftercooler
Displacement (L) 19
Cylinder Arrangement 12 V
Bore x Stroke (mm x mm) 159*159
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) N/A
Length (mm) N/A
Height (mm) N/A
Weight (kg) N/A
Fuel Tank Capacity (L) N/A
Open Set
Width (mm) N/A
Length (mm) N/A
Height (mm) N/A
Weight (kg) N/A
Fuel Tank Capacity (L) N/A

HTML tutorialDJ-C SERİSİ 900 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
900 720 1500
Prime Power
kVA kW Engine Speed (rpm)
818 655 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model KTA38-G2B
Air Intake System Turbocharged / Aftercooler
Displacement (L) 38
Cylinder Arrangement 12 V Tipi
Bore x Stroke (mm x mm) 159*159
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) N/A
Length (mm) N/A
Height (mm) N/A
Weight (kg) N/A
Fuel Tank Capacity (L) N/A
Open Set
Width (mm) N/A
Length (mm) N/A
Height (mm) N/A
Weight (kg) N/A
Fuel Tank Capacity (L) N/A

HTML tutorialDJ-C SERİSİ 1000 kVA
CLICK TO DOWNLOAD THE TECHNICAL DATASHEET
OUTPUT VALUES
Standby Power
kVA kW Engine Speed (rpm)
1000 800 1500
Prime Power
kVA kW Engine Speed (rpm)
909 727 1500
DIESEL ENGINE

ISO 8528, ISO 3046, BS 5514, DIN 6271 Compliant engine brands are used: low fuel consumption, pump-mounted, with mechanical or electronic governors and the latest technology.

Brand Cummins
Model KTA38-G2A
Air Intake System Turbocharged / Aftercooler
Displacement (L) 38
Cylinder Arrangement 12 V Tipi
Bore x Stroke (mm x mm) 159*159
Governor Type Electronic
DIMENSIONS & WEIGHT
Canopied Set
Width (mm) N/A
Length (mm) N/A
Height (mm) N/A
Weight (kg) N/A
Fuel Tank Capacity (L) N/A
Open Set
Width (mm) N/A
Length (mm) N/A
Height (mm) N/A
Weight (kg) N/A
Fuel Tank Capacity (L) N/A
Cabin Features

Generator chassis are produced from steel with a special modular design. The tank is mounted to the chassis. Engine, alternator and radiator connections use vibration mounts to minimise vibration. Custom chassis and fuel-tank designs are available on request.

Acil Stop Butonu
Kontrol Panosu Penceresi
Special Sound Insulation
Egzoz Susturucu
Dedicated Cooling Air Ducts
Electrostatic paint coating resistant to corrosion and rust
Control Panel

The generator control panels are easy to use, updatable through secure software, robust and long-lasting. Optional remote control via ETHERNET and GPRS is available. The panel body is made from steel sheet and finished with electrostatic powder paint. The electronics are isolated and water-resistant.

Features
Automatic Control System with LCD Display
Remote Monitoring and Control
Multi-function Operation
Multiple Language Selection
Programmable via USB, RS-232 and GSM


DATAKOM PANEL DATASHEET (TR)



DATAKOM PANEL DATASHEET (EN)



FORTRUST PANEL DATASHEET (EN)

MORE INFORMATION

OUR E-CATALOGUE


CLICK TO DOWNLOAD




KATALOG

Quick Links

Contact

E-Catalogue

Download our full company catalogue.

Download
Scroll to Top
